FASTENERS FOR SOLAR ENERGY
Built Around
The Mounting Detail.
Foundation, support and bracing fasteners for solar mounting structures. Defined around the installation drawing and site requirements.
Explore The Connections
FOUNDATIONS · SUPPORTS · BRACINGEXPLORE BY CONNECTION
From The Ground To The Support Frame.
Choose a connection to review the relevant fasteners and the information needed for a clear quotation.
CONNECTION MAP SELECT A CONNECTION
Connection locations illustrated schematically.
AT THE GROUND CONNECTION
Define How The Support Is Anchored.
Specify the fixing method first, then the geometry and hardware. Cast-in anchors and embedded assemblies follow the foundation detail.
- Foundation interface
- Base plate layout, anchor spacing, embedment and exposed thread.
- Product geometry
- Rod diameter, bend or plate dimensions and matched hardware.
- Installation basis
- Foundation type and any project-specific installation tolerances.
L-Shaped Anchor Bolts
View Product
J-Shaped Anchor Bolts
View Product

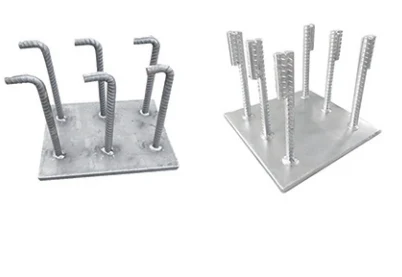

Embedded Plate Assemblies
View ProductAT THE MOUNTING FRAME
Fit The Hardware To The Section.

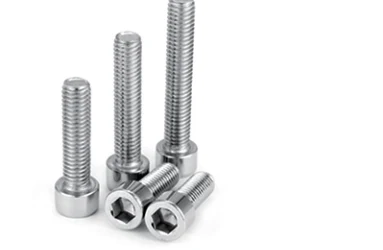

Match U-bolts and stainless fasteners to the actual pipe or support section. Define the connection fit, thread engagement and component quantities.
- Mating section
- Pipe outside diameter or the support profile dimensions.
- Fastener fit
- U-bolt inside width and height, bend form and usable thread.
- Material & finish
- Material / grade and the surface condition required for the site environment.
BETWEEN THE SUPPORTS
Coordinate The Bracing Detail.

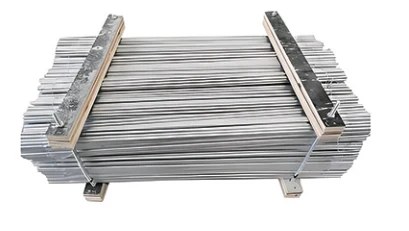

Tie rods and drawing-specific fastening components are ordered against the support bracing layout, with connection references and end details stated clearly.
- Rod schedule
- Diameter, overall or connection length and item quantities.
- End arrangement
- Threaded or bent ends, engagement and any required adjustment.
- Supply identification
- Marking, coating and packing by support row or installation area.
PREPARE YOUR ENQUIRY
The Drawing Starts The Conversation.
A clear project package connects the product geometry, supplied components and acceptance requirements.
Component Quantities
Fastener sizes, materials / grades and hardware quantities by item.
Site & Installation Requirements
Required corrosion protection, thread fit and the specified installation method.
Packing & Delivery
Row or area identification, inspection records, destination and delivery date.
Define How It Will Be Checked.
Include the inspection and documentation requirements with your drawings so the scope is clear from the quotation stage.
YOUR SOLAR ENERGY PROJECT
Have A Connection Drawing?
Share your drawings and component schedule. Let’s define the fastening requirement together.
