DRAWING-LED FASTENERS

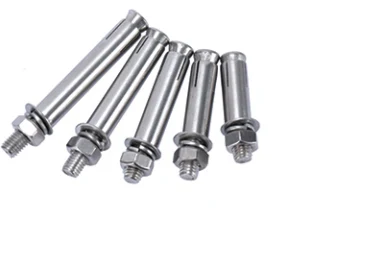

Expansion Anchor Bolts
Mechanical Expansion Anchor for project-defined connections, with dimensions, material and matched components specified for the installation.
SPECIFICATIONS & CUSTOMIZATION
Define The Geometry.
Define the dimensions and connection requirements together on the product drawing or schedule.
Dimensions & Configuration
- Anchor Type
- Sleeve / expansion configuration to the selected product
- Diameter & Length
- Nominal size and total anchor length
- Fixture Thickness
- Maximum fixture thickness and required engagement
- Installation Parameters
- Hole diameter, embedment and tightening torque
- Base Material
- Concrete condition, spacing and edge distance
Material & Grade
Specify the steel material and mechanical requirements for the selected product form.
System & Installation
Select the complete anchoring system against the substrate, embedment and installation conditions. Use the system-specific installation instructions.
Surface & Fit
Specify the surface condition and protection for the installation environment, including mating thread fit.
COMPONENTS & INSPECTION
Define The Complete Supply Requirement.
Matched Components
Include the components required by the connection drawing.
- Nuts, washers and accessories by item and quantity
- Identification against the product schedule
- Packing and handling protection for delivery
System Documentation
Specify the documents needed for the actual anchor system.
- Product dimensions and material identification
- System-specific performance and installation data
- Batch records and supplied hardware configuration
HAVE A DRAWING?
Have A Foundation Detail?
Send the dimensioned drawing, material / grade, finish, quantity and required installation hardware.
