Connection Drawings
Column bases, bolted joints and composite interface details.
FASTENERS FOR STEEL STRUCTURES
Made For
The Connection Detail.
Foundation anchors, structural bolt assemblies and headed shear studs for project-defined steel connections.
Explore The Connections
COLUMN BASES · BOLTED JOINTS · COMPOSITE CONNECTIONSEXPLORE BY CONNECTION
Three Interfaces. One Steel Structure.
Connect the column base, bolted steel joints and composite interface to the right product schedule.
CONNECTION MAP SELECT A CONNECTION
Connection locations illustrated schematically.
AT THE FOUNDATION
Start With The Base Plate.
Coordinate the anchors with the column base plate and foundation drawing. Define the anchor form, projection and complete hardware arrangement.
- Anchor layout
- Rod diameter and length, anchor spacing and base plate holes.
- Embedded geometry

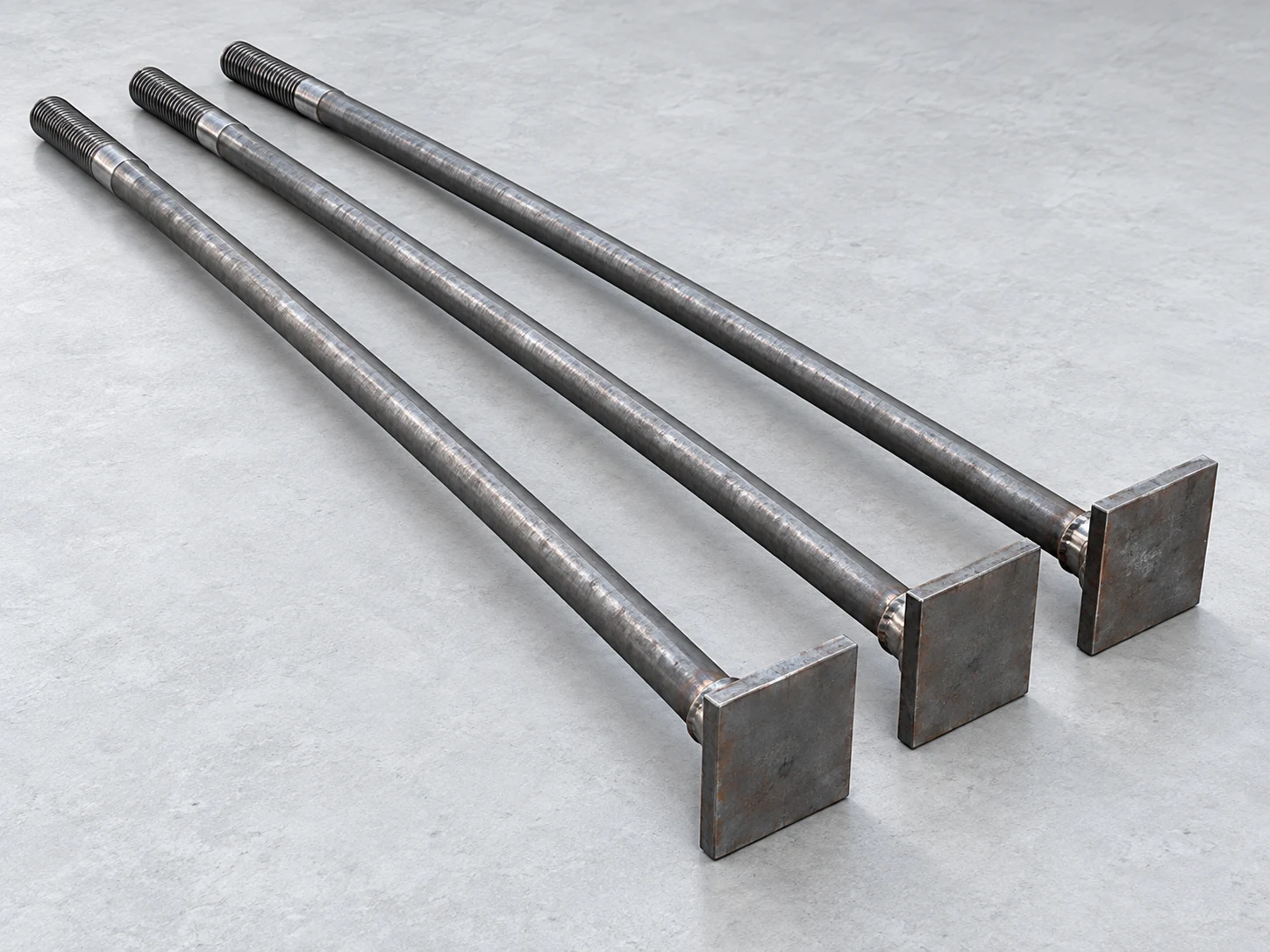

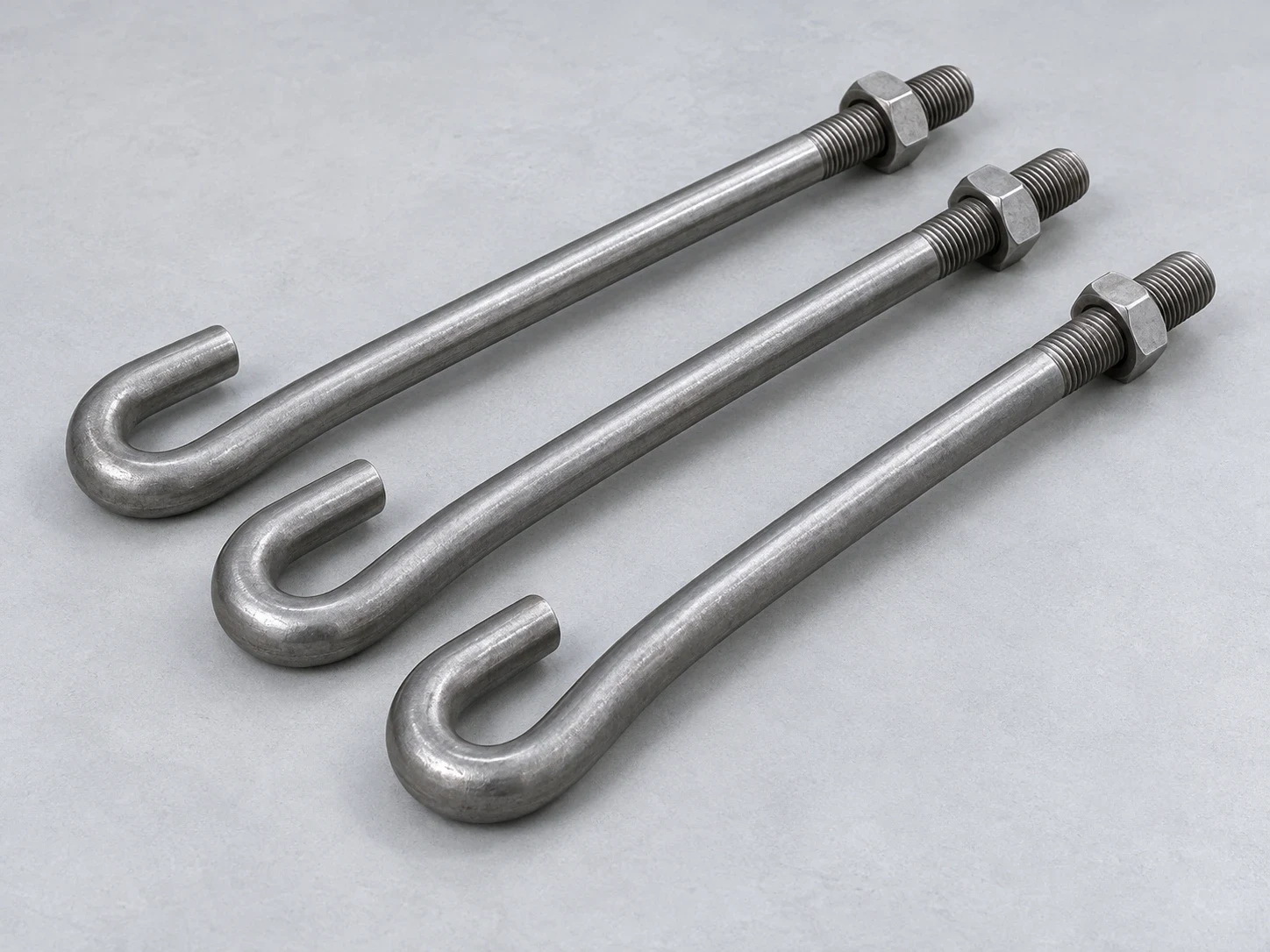

- L / J bend or welded plate dimensions and embedment detail.
- Matched hardware
- Nuts, washers and any plate washers above or below the base plate.
AT THE BEAM & COLUMN
Specify The Assembly System.

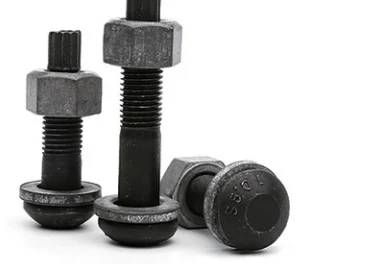

Order structural hex-head or tension-control bolt assemblies to the specified connection system. Bolt, nut and washer requirements are reviewed as a compatible set.
- Connection schedule
- Diameter, under-head length, grip and assembly quantity.
- Assembly system
- Governing standard, property class and matched hardware configuration.
- Tightening condition
- Preload requirements, installation method and specified testing documentation.
AT THE STEEL–CONCRETE INTERFACE
Define The Stud And The Weld.
Specify headed shear studs against the composite connection detail. Distinguish the supplied stud dimensions from the finished welded geometry.
- Stud dimensions
- Shank diameter, head dimensions and before / after welding length.
- Welding arrangement
- Base material, weld-end form and compatible ferrules where included.
- Inspection basis
- Material records, supplied-product checks and project weld acceptance criteria.
PREPARE YOUR ENQUIRY
The Drawing Starts The Conversation.
A clear project package connects the product geometry, supplied components and acceptance requirements.
Assembly Schedule
Bolt or stud sizes, grades, matched components and quantities.
Installation Specification
Tightening or welding requirements and the governing connection standard.
Acceptance & Identification
Inspection scope, records and packing by member or connection reference.
Define How It Will Be Checked.
Include the inspection and documentation requirements with your drawings so the scope is clear from the quotation stage.
YOUR STEEL STRUCTURES PROJECT
Have A Connection Drawing?
Share your drawings and component schedule. Let’s define the fastening requirement together.
