DRAWING-LED FASTENERS
Power Anchor Rods

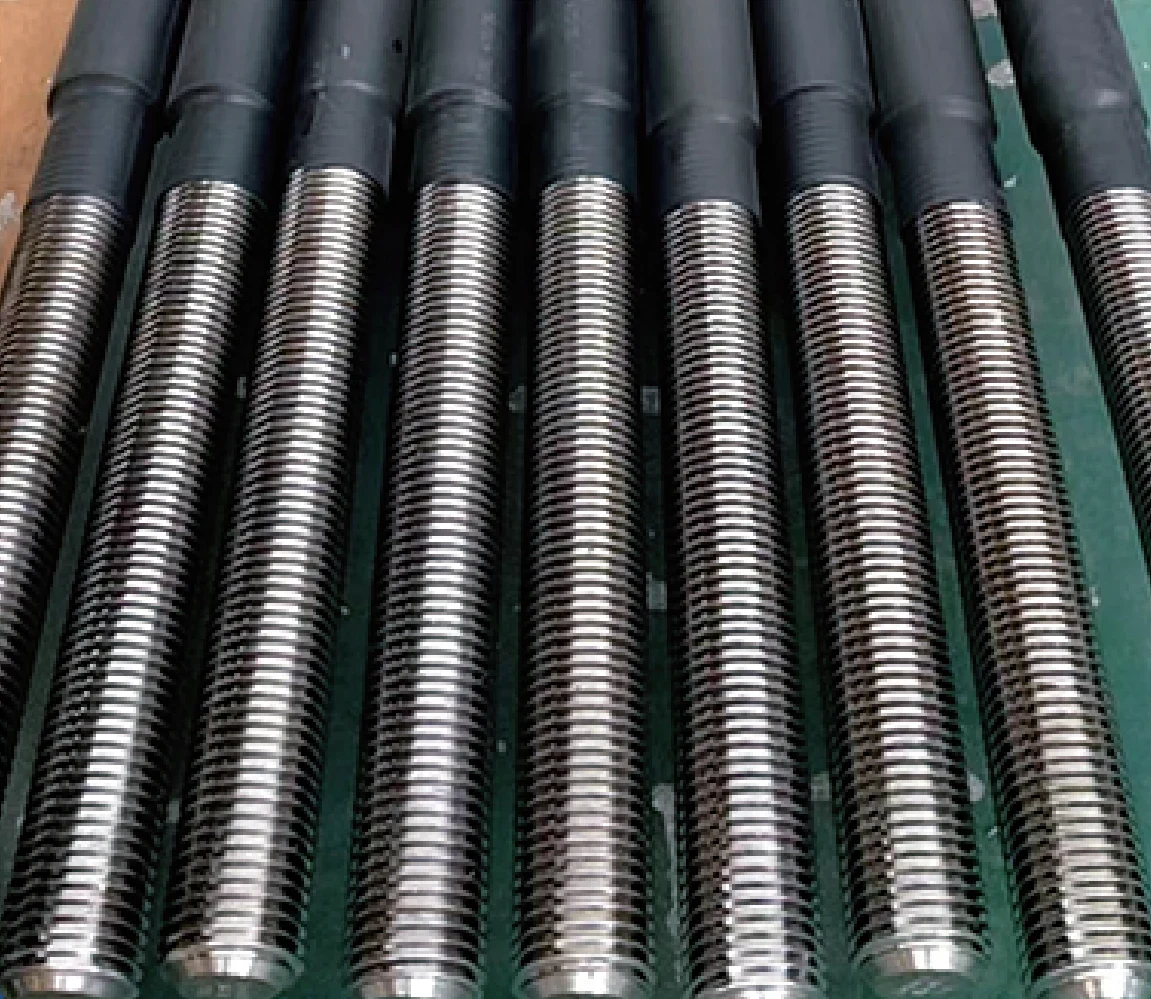

Long, double-ended anchor rods for wind turbine and power foundation projects, manufactured to the agreed drawing.
SPECIFICATIONS & CUSTOMIZATION
Start With Your Drawing.
Match the dimensions below to your foundation drawing, then define the material and finish.
Dimensions
- Rod Diameter · d
- M12–M64; other diameters to drawing
- Overall Length · L
- 300–3000 mm; longer rods to project requirements
- Threaded Ends · b₁ / b₂
- Metric threads; independently specified lengths at both ends
- Straightness & Tolerances
- Straightness, thread fit and dimensional tolerances to the approved drawing
Material & Grade
35CrMoA / 42CrMoA alloy steel; property classes 8.8 / 10.9. Material and heat treatment are selected to meet the specified grade.
Standard & Drawing
Dimensions to the project drawing. Applicable product standard, drawing revision and acceptance requirements are agreed with the order.
Surface Finish
Plain / black finish or hot-dip galvanizing. Specify coated areas, coating requirements and thread fit after coating.
COMPONENTS & INSPECTION
Define What Comes With The Rods.
Matched Components
Confirm the quantity and specification of nuts, washers and anchor plates in your drawing or bill of materials.
- Nuts and washers: type, grade and quantity per rod
- Anchor plates: geometry, thickness and hole layout
- Assembly: loose components or cage assembly, as agreed
Inspection Requirements
List your acceptance criteria before quotation so the inspection scope can be agreed.
- Dimensions, threads and straightness
- Material and mechanical property requirements
- Coating inspection and documentation, where required
HAVE A DRAWING?
Let’s Review Your Anchor Rod Requirement.
Send your drawing, quantity, material / grade, finish and delivery requirements.
