DRAWING-LED FASTENERS

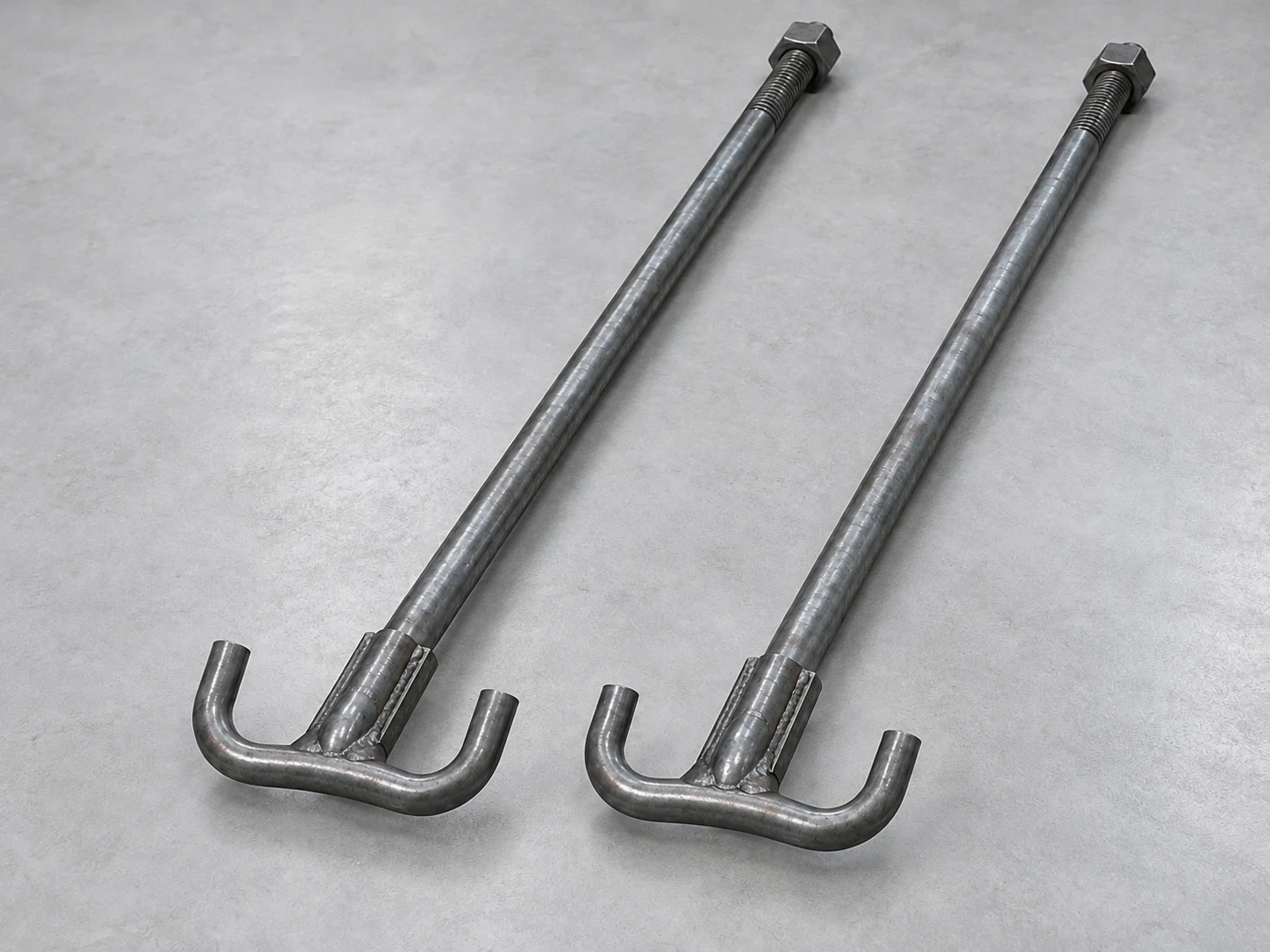

Hook-Type Anchor Bolts
Rod With Welded Anchor Hooks for project-defined connections, with dimensions, material and matched components specified for the installation.
SPECIFICATIONS & CUSTOMIZATION
Define The Geometry.
Define the dimensions and connection requirements together on the product drawing or schedule.
Dimensions & Configuration
- Main Rod · d / L
- Rod diameter and overall outside length to drawing
- Thread Length · b
- Thread pitch, length and tolerance on the main rod
- Claw Span · S
- Outside width between opposing hook extremities
- Claw Rod Diameter · dc
- Cross-bar / claw rod diameter, specified separately from main rod
- Hook Return · h
- Tip height above the lower cross-bar centreline
- Inside Radius · R / Bend Angle · α
- 90° terminal returns shown; inside radius and other hook angles to drawing
- Weld & Alignment
- Claw-to-rod joint, weld size, orientation and symmetry to drawing
Material & Grade
Specify the steel material and mechanical requirements for the selected product form.
Welds & Assembly
Specify weldability, joint configuration, weld size and alignment tolerances. Include the required weld inspection scope.
Surface & Fit
Specify the surface condition and protection for the installation environment, including mating thread fit.
COMPONENTS & INSPECTION
Define The Complete Supply Requirement.
Matched Components
Include the components required by the connection drawing.
- Nuts, washers and accessories by item and quantity
- Identification against the product schedule
- Packing and handling protection for delivery
Inspection Requirements
Define acceptance criteria for the product and connection.
- Dimensions and drawing-specific geometry
- Material and mechanical requirements
- Surface condition, threads and inspection records
HAVE A DRAWING?
Have A Foundation Detail?
Send the dimensioned drawing, material / grade, finish, quantity and required installation hardware.
